电源系列
单路开关电源
-

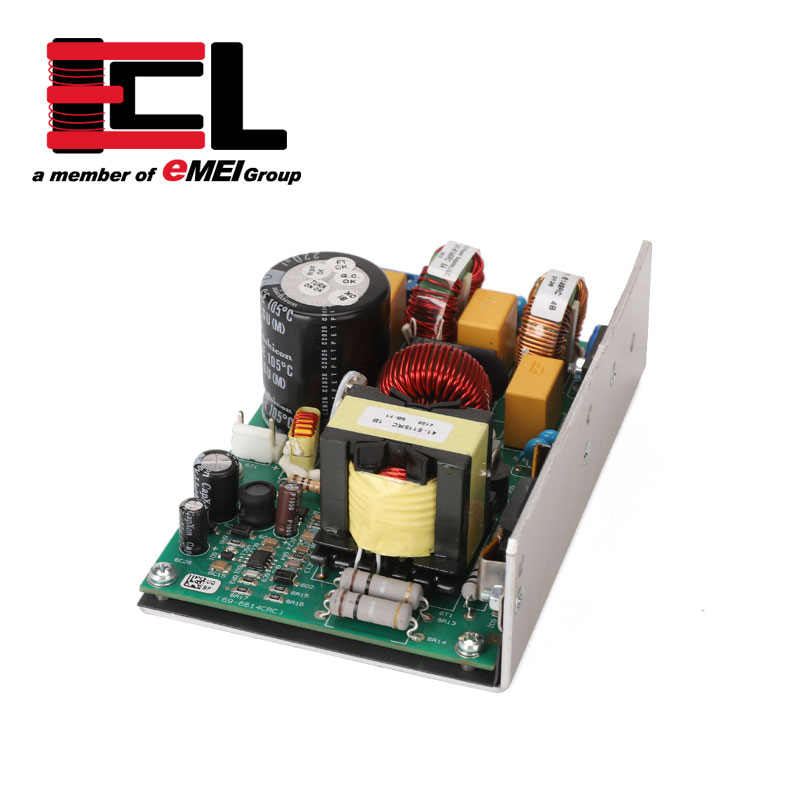

60-120W 机壳电源
输入电压范围 ：90-264VAC
输入频率范围：47-63HZ
功率因数：PF＞0.95/230VAC
输出效率：P＞86%
输出功率范围：60-120W
输出电压范围：12-48VDC
输出电流范围：1.25-10A
整机尺寸：10CM*5.5CM*3.0CM
输出功率 功率因数 V1 电压精度 效率 纹波 60W 0.95 12VDC/5A ±1% 86% 200mV Vp-p 60W 0.95 24VDC/2.5A ±1% 88% 200mV Vp-p 60W 0.95 36VDC/1.67A ±1% 88% 200mV Vp-p 60W 0.95 48VDC/1.25A ±1% 89% 200mV Vp-p 100W 0.95 12VDC/8.3A ±1% 86% 200mV Vp-p 100W 0.95 24VDC/4.17A ±1% 88% 200mV Vp-p 100W 0.95 36VDC/2.78A ±1% 88% 200mV Vp-p 100W 0.95 48VDC/2.08A ±1% 89% 200mV Vp-p 120W 0.95 12VDC/10A ±1% 86% 200mV Vp-p 120W 0.95 24VDC/5A ±1% 88% 200mV Vp-p 120W 0.95 36VDC/3.33A ±1% 88% 200mV Vp-p 120W 0.95 48VDC/2.5A ±1% 89% 200mV Vp-p 150-250W 机壳电源
输入电压范围：90-264VAC
输入频率范围：47-63HZ
功率因数：PF＞0.95/230VAC
输出效率：P＞91%
输出功率范围：150-250W
输出电压范围：12-58VDC
输出电流范围：4.16-12.5A
整机尺寸：14CM*6.8CM*3.2CM
输出功率 功率因数 V1 电压精度 效率 纹波 150W 0.95 12VDC/12.5A ±1% 91% 300mV Vp-p 150W 0.95 24VDC/6.25A ±1% 92% 300mV Vp-p 150W 0.95 36VDC/4.17A ±1% 93% 300mV Vp-p 150W 0.95 48VDC/3.15A ±1% 94% 300mV Vp-p 200W 0.95 24VDC/8.33A ±1% 91% 300mV Vp-p 200W 0.95 36VDC/5.56A ±1% 92% 300mV Vp-p 200W 0.95 48VDC/4.16A ±1% 93% 300mV Vp-p 200W 0.95 58VDC/3.45A ±1% 94% 300mV Vp-p 250W 0.95 24VDC/10.41A ±1% 91% 300mV Vp-p 250W 0.95 36VDC/6.94A ±1% 92% 300mV Vp-p 250W 0.95 48VDC/5.21A ±1% 94% 300mV Vp-p 250W 0.95 58VDC/4.31A ±1% 94% 300mV Vp-p 300-400W 机壳电源
输入电压范围：90-264VAC
输入频率范围：47-63HZ
功率因：PF＞0.95/230VAC
输出效率：P＞91%
输出功率范围：300-450W
输出电压范围：24-58VDC
输出电流范围：5.17-16.67A
整机尺寸：14CM*8.2CM*4.0CM
输出功率 功率因数 V1 电压精度 效率 纹波 300W 0.95 24VDC/12.5A ±1% 91% 300mV Vp-p 300W 0.95 36VDC/8.33A ±1% 92% 300mV Vp-p 300W 0.95 48VDC/6.25A ±1% 93% 300mV Vp-p 300W 0.95 58VDC/5.17A ±1% 94% 300mV Vp-p 350W 0.95 24VDC/14.58A ±1% 91% 300mV Vp-p 350W 0.95 36VDC/9.72A ±1% 92% 300mV Vp-p 350W 0.95 48VDC/7.29A ±1% 93% 300mV Vp-p 350W 0.95 58VDC/6.03A ±1% 95% 300mV Vp-p 400W 0.95 24VDC/16.67A ±1% 91% 300mV Vp-p 400W 0.95 36VDC/11.11A ±1% 92% 300mV Vp-p 400W 0.95 48VDC/8.33A ±1% 94% 300mV Vp-p 400W 0.95 58VDC/6.90A ±1% 95% 300mV Vp-p 450-550W 机壳电源
输入电压范围：90-264VAC
输入频率范围：47-63HZ
功率因数：PF＞0.95/230VAC
输出效率：P＞91%
输出功率范围：450-550W
输出电压范围：24-58VDC
输出电流范围：9.56-22.92A
整机尺寸：18CM*9CM*4.5CM
输出功率 功率因数 V1 电压精度 效率 纹波 450W 0.95 24VDC/18.75A ±1% 91% 300mV Vp-p 450W 0.95 36VDC/12.5A ±1% 92% 300mV Vp-p 450W 0.95 48VDC/9.36A ±1% 93% 300mV Vp-p 450W 0.95 58VDC/7.56A ±1% 94% 300mV Vp-p 500W 0.95 24VDC/20.83A ±1% 91% 300mV Vp-p 500W 0.95 36VDC/13.89A ±1% 92% 300mV Vp-p 500W 0.95 48VDC/10.42A ±1% 93% 300mV Vp-p 500W 0.95 58VDC/8.62A ±1% 95% 300mV Vp-p 550W 0.95 24VDC/22.92A ±1% 91% 300mV Vp-p 550W 0.95 36VDC/15.28A ±1% 92% 300mV Vp-p 550W 0.95 48VDC/11.46A ±1% 93% 300mV Vp-p 550W 0.95 58VDC/9.48A ±1% 95% 300mV Vp-p 600-800W 机壳电源
输入电压范围：90-264VAC
输入频率范围：47-63HZ
功率因数：PF＞0.95/230VAC
输出效率：P＞91%
输出功率范围：600-800W
输出电压范围：24-58VDC
输出电流范围：10.34-33.33A
整机尺寸：15CM*11CM*5.0CM
输出功率 功率因数 V1 电压精度 效率 纹波 600W 0.95 24VDC/25A ±1% 91% 300mV Vp-p 600W 0.95 36VDC/16.67A ±1% 92% 300mV Vp-p 600W 0.95 48VDC/12.5A ±1% 93% 300mV Vp-p 600W 0.95 58VDC/10.34A ±1% 94% 300mV Vp-p 700W 0.95 24VDC/29.17A ±1% 91% 300mV Vp-p 700W 0.95 36VDC/19.44A ±1% 92% 300mV Vp-p 700W 0.95 48VDC/14.58A ±1% 93% 300mV Vp-p 700W 0.95 58VDC/12.07A ±1% 95% 300mV Vp-p 800W 0.95 24VDC/33.33A ±1% 91% 300mV Vp-p 800W 0.95 36VDC/22.22A ±1% 92% 300mV Vp-p 800W 0.95 48VDC/16.67A ±1% 94% 300mV Vp-p 800W 0.95 58VDC/13.79A ±1% 95% 300mV Vp-p 900-1200W 机壳电源
输入电压范围：90-264VAC
输入频率范围：47-63HZ
功率因数：PF＞0.95/230VAC
输出效率：P＞91%
输出功率范围：900-1200W
输出电压范围：24-58VDC
输出电流范围：15.52-50A
整机尺寸：22CM*9.0CM*5.0CM/16CM*8.9CM*5.0CM
输出功率 功率因数 V1 电压精度 效率 纹波 900W 0.95 24VDC/37.5A ±1% 91% 300mV Vp-p 900W 0.95 36VDC/25A ±1% 92% 300mV Vp-p 900W 0.95 48VDC/18.75A ±1% 93% 300mV Vp-p 900W 0.95 58VDC/15.52A ±1% 94% 300mV Vp-p 1000W 0.95 24VDC/41.67A ±1% 91% 300mV Vp-p 1000W 0.95 36VDC/27.78A ±1% 92% 300mV Vp-p 1000W 0.95 48VDC/20.83A ±1% 93% 300mV Vp-p 1000W 0.95 58VDC/17.24A ±1% 95% 300mV Vp-p 1200W 0.95 24VDC/50A ±1% 91% 300mV Vp-p 1200W 0.95 36VDC/33.33A ±1% 92% 300mV Vp-p 1200W 0.95 48VDC/25A ±1% 94% 300mV Vp-p 1200W 0.95 58VDC/20.69A ±1% 95% 300mV Vp-p 1300-1500W 机壳电源
输入电压范围：90-264VAC
输入频率范围：47-63HZ
功率因数：PF＞0.95/230VAC
输出效率：P＞91%
输出功率范围：900-1200W
输出电压范围：24-58VDC
输出电流范围：22.41-62.5A
整机尺寸：23CM*10.6CM*5.0CM
输出功率 功率因数 V1 电压精度 效率 纹波 1300W 0.95 24VDC/54.17A ±1% 91% 300mV Vp-p 1300W 0.95 36VDC/36.11A ±1% 92% 300mV Vp-p 1300W 0.95 48VDC/27.08A ±1% 93% 300mV Vp-p 1300W 0.95 58VDC/22.41A ±1% 95% 300mV Vp-p 1400W 0.95 24VDC/58.33A ±1% 91% 300mV Vp-p 1400W 0.95 36VDC/38.89A ±1% 93% 300mV Vp-p 1400W 0.95 48VDC/29.16A ±1% 93% 300mV Vp-p 1400W 0.95 58VDC/24.14A ±1% 96% 300mV Vp-p 1500W 0.95 24VDC/62.5A ±1% 91% 300mV Vp-p 1500W 0.95 36VDC/41.67A ±1% 93% 300mV Vp-p 1500W 0.95 48VDC/31.25A ±1% 94% 300mV Vp-p 1500W 0.95 58VDC/25.86A ±1% 96% 300mV Vp-p 1600-2000W 机壳电源
输入电压范围：90-264VAC
输入频率范围：47-63HZ
功率因数：PF＞0.95/230VAC
输出效率：P＞91%
输出功率范围：900-1200W
输出电压范围：24-58VDC
输出电流范围：27.59-100A
整机尺寸：25CM*12CM*5.5CM
输出功率 功率因数 V1 电压精度 效率 纹波 1600W 0.95 ±1% 91% 300mV Vp-p 1600W 0.95 ±1% 92% 300mV Vp-p 1600W 0.95 ±1% 93% 300mV Vp-p 1600W 0.95 ±1% 95% 300mV Vp-p 1800W 0.95 ±1% 91% 300mV Vp-p 1800W 0.95 ±1% 93% 300mV Vp-p 1800W 0.95 ±1% 93% 300mV Vp-p 1800W 0.95 ±1% 96% 300mV Vp-p 2000W 0.95 ±1% 91% 300mV Vp-p 2000W 0.95 ±1% 93% 300mV Vp-p 2000W 0.95 ±1% 94% 300mV Vp-p 2000W 0.95 ±1% 96% 300mV Vp-p -
